GALVANOMETER
MOVING COIL GALVANOMETER(MCG)
It is a device used to detect or measure very small amount of currentIt works in the principle that when current flows through a rectangular coil kept in a magnetic field,it is deflected.The angle of reflection is proportional to the current flows through the coil.(when current flows through a conductor a magnetic field is produced around that wire. If the current carrying conductor is placed in a magnetic field due to the mutual interaction between the two magnetic fields, the conductor is deflected)
There are two types of MCG
Suspended type
A galvanometer consist of a rectangular coil of large number of turns of insulated copper wire wound on a thin metallic frame.The coil is suspended in between the two horse shoe magnet which can produce a radial magnetic field.The suspension wire used is fine phosphor bronze fibre.A small mirror is also attached to the suspension wire. The lower end of the suspension wire also fixed using phosphor bronze spring.When current flows through the wire the wire gets twisted.
Current sensitivity
The deflection produced in a galvanometer for unit current.
Voltage sensitivity
Deflection produced on a galvanometer for unit voltage.
Figure of merit
The current required to produce a deflection of 1mm on a scale placed at a distance of 1m from the mirror of the galvanometer.
In the pointer type galvanometer, the coil is pivoted on ball bearings.A light aluminium pointer attached to the coil shows a deflection when current is passed. Alight spring attached to the end of the coil provide the restoring couple.
AMMETER
It uses magnetic deflection. A current carrying coil placed in a permanent magnetic field under go deflection. A spiral spring attached should provide restoring force.An ideal ammeter has zero resistance.
AMMETER
It uses magnetic deflection. A current carrying coil placed in a permanent magnetic field under go deflection. A spiral spring attached should provide restoring force.An ideal ammeter has zero resistance.
CONVERSION OF GALVANOMETER IN TO AMMETER
A galvanometer can be converted in to an ammeter by connecting a low resistance called shunt resistance parallel to the galvanometer. To measure current ammeter is connected in series with the circuit.
VOLTMETER
Voltmeter is used to measure potential difference. A moving coil voltmeter is constructed by connecting a series resistance with moving coil galvanometer.
CONVERSION OF GALVANOMETER IN TO VOLTMETER
A galvanometer can be converted in to voltmeter by connecting a high resistance in series with it.
A Voltmeter is connected in parallel with the circuit element across which the potential difference is measured. A ideal voltmeter has infinite resistance.
digital MULTIMETER
A galvanometer can be converted in to an ammeter by connecting a low resistance called shunt resistance parallel to the galvanometer. To measure current ammeter is connected in series with the circuit.
VOLTMETER
Voltmeter is used to measure potential difference. A moving coil voltmeter is constructed by connecting a series resistance with moving coil galvanometer.
CONVERSION OF GALVANOMETER IN TO VOLTMETER
A galvanometer can be converted in to voltmeter by connecting a high resistance in series with it.
A Voltmeter is connected in parallel with the circuit element across which the potential difference is measured. A ideal voltmeter has infinite resistance.
digital MULTIMETER
It is a digital meter used as voltmeter,Ammeter, resistor checking. It used to measure voltage,current,and reistance.It is a combination of multi range ac voltmeter, multi range dc voltmeter and multirange ohm meter.
CELL/ BATTERY
Cell
is used to provide potential difference at the ends of a wire.One end
of a cell is higher energy it is called positive end.Other end is lower
energy called negative.When connected a wire electrical energy is flow
from higher energy to lower energy
DRY CELL
It consist of a metallic jar of zinc,it serves as the negative electrode.. The carbon rod through the center is the positive electrode.The electrolyte is in the form of paste of ammonium chloride and zinc chloride.It is mixed with powdered coke and graphite and manganese dioxide.The manganese dioxide prevent the formation of gaseous hydrogen. When cell is connected in a circuit zinc atom loses two electrons per atom.The electrons flows in the circuit and pass in to solution.The ammonium ions in the electrolyte remove electrons from the carbon anode
VOLTAIC CELL
RESISTANCE BOX
It consist of a metallic jar of zinc,it serves as the negative electrode.. The carbon rod through the center is the positive electrode.The electrolyte is in the form of paste of ammonium chloride and zinc chloride.It is mixed with powdered coke and graphite and manganese dioxide.The manganese dioxide prevent the formation of gaseous hydrogen. When cell is connected in a circuit zinc atom loses two electrons per atom.The electrons flows in the circuit and pass in to solution.The ammonium ions in the electrolyte remove electrons from the carbon anode
VOLTAIC CELL
Constuction of a simple voltaic cell
It is an electrochemical cell. It convert chemical energy to electrical energy
It
consist of a glass vessel containing dilute Sulphuric acid . Zinc and
copper Plates are placed in the acid (from the bottom side of the
battery you will get zinc, a piece of earth wire used in household
wiring can be used as copper)
The rods are connected to a LED bulb through a copper wire.The bulb lights up
Electrons flows from Zinc to Copper.The conventional current flows from Cu to Zn
RESISTANCE BOX
It is used to provide an obstruction (hindrance) to current flow as the resistance increases current flow decreases
BULB
It
convert electrical energy to light energy. Different types of bulbs are
available. The power of the bulb is represented as Watt. If the
wattage is less less electrical energy is needed. Incandescent lamp utilize the Heating effect of current. Compact Fluorescent lamps are low
Wattage. The most efficient and very low wattage bulbs are LED lamps
INCANDESCENT LAMP
It
is also known as filament lamp.A Tungsten filament is placed inside a
glass bulb.wires supports the filament .Electricity flows throw this
wires and filament
Why Tungsten is used as filament?
It
has very high melting point(3410 c),high resistivity,high ductility(we
can make it very thin wire), when heated light is emitted
Why inert gas is filled in this glass bulb?
At
high temperature there is a chance of evaporation of Tungsten. To
reduce evaporation inert gas filled inside the glass bulb. It increases
the life of the bulb
In early days vacuum bulbs are used what is its disadvantages?
Tungsten filament gets evaporated faster.glass changes to black in color, the life period is very less
What is the energy change take place in the bulb?
electrical energy changes to heat and light
Who discovered filament lamb?
1000 hours
Why the filament of some bulb melts rapidly?
Some
manufacturing defects such as not filling the inert gas inside the
glass bulb properly. The heating expansion of glass and filament and
filament connecting wires are slightly different. because of this inert
gas may escape from the glass bulb. The over current flow in the circuit
may also melts the filament
Is Zero watt filament lamp is possible?
No, if the power is zero no light is emitted, they have 5w incandescent lamps
No, if the power is zero no light is emitted, they have 5w incandescent lamps
DISCHARGE LAMPS
Main parts of a discharge lamp is
A
glass tube filled with suitable gas at low pressure, Electrodes at both
ends of the tube,heating coil at the ends of both electrodes
A
high voltage is applied on the electrodes of the tube. The gas gets
ionized.Electrons emitted from the heating coil collide with the atoms
present in the glass tube.The electrons in the atom get energy and
excited to higher energy states.When the excited electrons gets back to
the normal energy state infrared, ultra violet,visible rays are emitted
As
the result of collision of electrons and ionized atoms with unionized
atoms emits light. Color of light depends on the nature of gas taken in
the tube
GAS in the tube Color of light emitted
Neon Orange RED
Nitrogen Red
Sodium vapour Yellow
Mercury vapour White
Chlorine Green
Hydrogen Blue
Mercury vapour lamp
Sodium vapour lamp

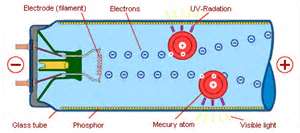

It is the most Commonly used disharge lamp.When electricity
flows through the heating coil it gets heated and electrons are
emitted.To increase the electron emitting heating coil is coated with
thorium oxide.The mercury in the tube gets evaporated. The electrons
emitted from the heating coil collide with mercury atom as a result of
this ultra violet rays are emitted.These rays are absorbed by the
fluorescent material coated inside the tube and changes it in to visible
light
Compact fluorescent lamp(CFL)
CFL gas a unit of electronic circuit and a fluorescent tube containing mercuric vapour. With the help of electronic circuit high frequency electricity is (50KHz) is supplied between the electrodes of the tube.As a result electrons are emitted from electrodes. These electrons collide with mercury atoms ultraviolet radiation emitted. Fluorescent coating with in the tube convert UV rays to visible light
The life period is 5 times that of a incandescent lamp
Gives more intense light
Majority of electricity convert to light
Disturbance due to shadow is very less
Compact fluorescent lamp(CFL)
CFL gas a unit of electronic circuit and a fluorescent tube containing mercuric vapour. With the help of electronic circuit high frequency electricity is (50KHz) is supplied between the electrodes of the tube.As a result electrons are emitted from electrodes. These electrons collide with mercury atoms ultraviolet radiation emitted. Fluorescent coating with in the tube convert UV rays to visible light
Advantages of discharge lamp over incandescent lamp
A very low power is enoughThe life period is 5 times that of a incandescent lamp
Gives more intense light
Majority of electricity convert to light
Disturbance due to shadow is very less
RHEOSTAT
It is used to vary the resistance. Varying the length of wire we can change the resistance. length of wire is directly proportional to resistance
It is used to vary the resistance. Varying the length of wire we can change the resistance. length of wire is directly proportional to resistance
